Create a Cloudflare R2 bucket and API token, connect it to AgentSDR, and store WhatsApp call recordings and contact photos privately.
Cloudflare R2 is the file storage AgentSDR uses for WhatsApp call recordings and contact photos. You need it before you place recorded calls. Without it those two features are off.
What you need
A Cloudflare account with an R2 subscription. Cloudflare bills R2 usage to you directly, with a free allowance each month. Check R2 pricing for current terms.
AgentSDR stores two kinds of files in your bucket:
Call recordings, under calls/YYYY/MM/ (one file per call, Opus audio in a .webm or .ogg container).
Contact photos, under photos/people/.
Nothing in the bucket is public. The recorder extension uploads each recording with a presigned URL that AgentSDR creates for that one file, and it expires after 15 minutes. Playback in the app uses a presigned link that expires after 5 minutes. Contact photos are shown through a link valid for 1 hour. The Cloudflare key you save never leaves the server.
In the Cloudflare dashboard, open Storage & databases → R2 object storage and create a bucket (see Cloudflare’s guide). A bucket name uses only lowercase letters, numbers and hyphens, 3 to 63 characters, and does not start or end with a hyphen. Leave it private (the default). If R2 is not enabled yet, Cloudflare asks you to add an R2 subscription first.
2
Copy your Account ID
AgentSDR builds the storage address https://ACCOUNT_ID.r2.cloudflarestorage.com from it. In the dashboard, press Cmd/Ctrl + K, type Copy account ID and select the result. Other places are listed in Cloudflare’s guide.
3
Create an R2 API token
On the R2 object storage page, click Manage next to API Tokens (under Account Details). Click Create Account API token (or Create User API token). Under Permissions choose Object Read & Write, and scope the token to the bucket you created. Create it. Cloudflare shows an Access Key ID and a Secret Access Key. Copy both now: the secret is shown only once. Details are in Cloudflare’s token guide.
4
Open the Integrations page in AgentSDR
Go to Settings → WhatsApp → Integrations. On the Cloudflare R2 card, click Connect.

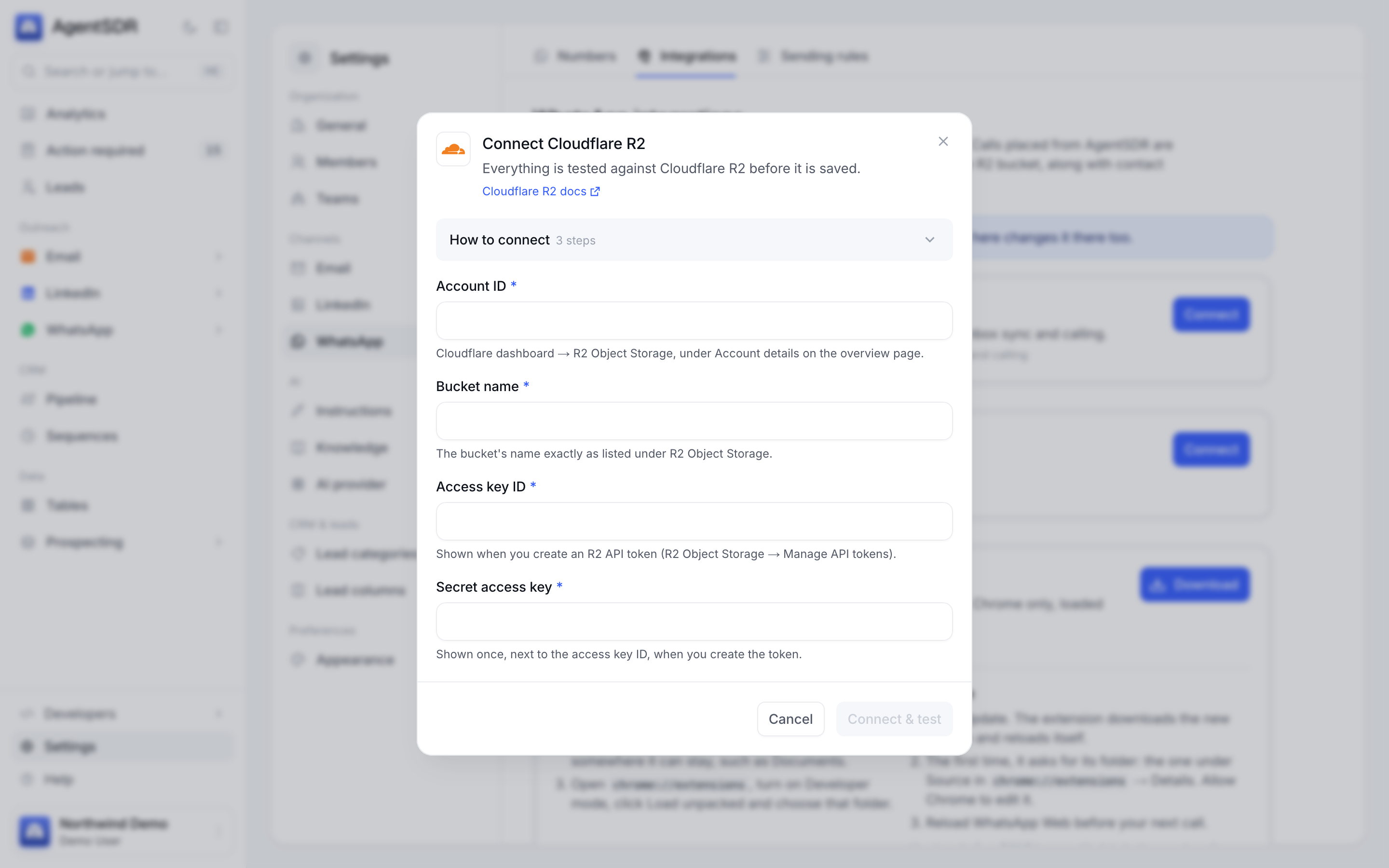

Four fields, then Connect and test.
5
Fill in the four fields
Field
Where the value is
Account ID
Step 2.
Bucket name
The bucket’s name exactly as listed under R2 object storage.
Access key ID
Shown when you created the token in step 3.
Secret access key
Shown once, next to the access key ID.
6
Click Connect & test
AgentSDR sends one HeadBucket request to your bucket with these credentials. If it succeeds, the card shows Connected.
You do not need to set up CORS on the bucket. Recordings are uploaded by the recorder extension’s background service worker, which has its own host permissions, so the browser does not apply CORS to those requests.
The Cloudflare R2 card shows Connected and a Last verified time.
To test end to end, place a short recorded WhatsApp call as described in Calling. After the call ends, an object appears in your bucket under calls/, and the recording plays on the call.
R2 answered 404. Check the Bucket name against the list in the Cloudflare dashboard, including hyphens and case.
R2 rejected these credentials for that bucket
R2 answered 401 or 403. The Access Key ID or Secret Access Key is wrong, or the token is not scoped to this bucket, or it lacks Object Read & Write. Create a new token and paste both values again.
Could not reach R2 with this account ID
Any other failure. Check the Account ID for typos and that your server can reach the internet. If the bucket was created with a jurisdiction (EU, FedRAMP), its endpoint differs from the standard one AgentSDR uses, so use a bucket without a jurisdiction.
Cloudflare R2 is not connected — connect it in Settings → WhatsApp → Integrations
A feature needing R2 (recording, playback, photos) answered 409 because this organization has not connected it. Connect it as above.
storage answered 403
The recorder extension reports storage answered followed by R2’s status when its upload fails. A 403 usually means the token cannot write to this bucket. Check the token has Object Read & Write on it, re-save the credentials, then place a new call.
