Connect a Google Cloud service account to your Workspace domain so AgentSDR can send email from, and read, your team’s Gmail mailboxes.
Email in AgentSDR works through one Google Cloud service account that your Workspace admin authorises to act as your mailboxes. You set it up once per organization. Until it is connected, email accounts, email campaigns and reply sync are off.
What you need
A Google Workspace domain (a free personal @gmail.com account does not work).
Someone with a Workspace super admin account, who does the Admin console part (step 6). Only super admins can set up domain-wide delegation.
Someone who can create a project and a service account in Google Cloud (project owner or similar). To create the key you need the Service Account Key Admin role.
An AgentSDR owner or admin, to save the credentials.
About 15 minutes. Google says delegation changes can take up to 24 hours to apply, though they are usually much quicker.
The whole setup in two minutes. Every step is written out below.
AgentSDR never asks your reps to sign in to Google. Instead:
You create a service account (a robot identity) in Google Cloud and download its JSON key.
A Workspace super admin gives that service account permission, through domain-wide delegation, to act as users on your domain, limited to two Gmail scopes.
You give the key to AgentSDR. For each mailbox you add, AgentSDR asks Google for a token that says “this service account, acting as [email protected]”, then sends and reads Gmail with it.
Why delegation exists: a service account is not a person and has no mailbox of its own. Google only lets it touch a user’s Gmail if an admin has explicitly allowed it for that domain. That one admin approval replaces a password or consent screen for every mailbox. It is also why this page needs two consoles: Google Cloud creates the identity, the Admin console grants it access.It powers three things in AgentSDR: sending (campaign emails go out through Gmail’s send API), the mailbox list (Settings → Email → Mailboxes), and reading replies. Reading replies in real time needs one more piece, covered in Gmail reply sync.The two scopes AgentSDR requests, as read from the code, are gmail.send (send mail) and gmail.readonly (read mail, test a mailbox, register reply notifications). It cannot delete mail or change settings.
1
Create or choose a Google Cloud project
Open the Google Cloud console, click the project picker at the top, and choose New project (or pick an existing project you control). Give it a name such as agentsdr. Note the project ID; you will use it again for reply sync.
2
Enable the Gmail API
With that project selected, open APIs & Services → Library, search for Gmail API, open it and click Enable. If you skip this, Gmail calls fail later with a “Gmail API has not been used” error.

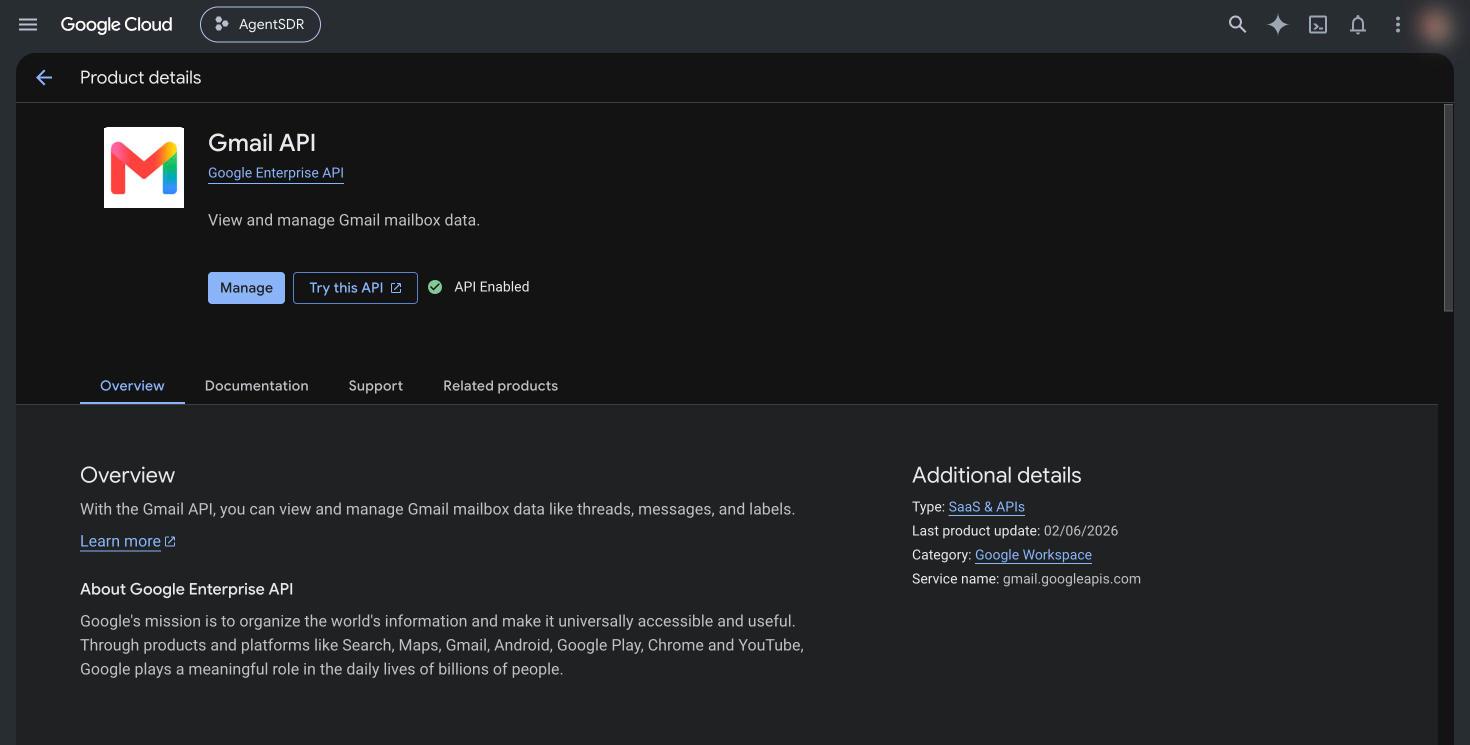

Gmail API in the API Library. If it is already on, you see Manage and API Enabled instead of Enable.
3
Create a service account

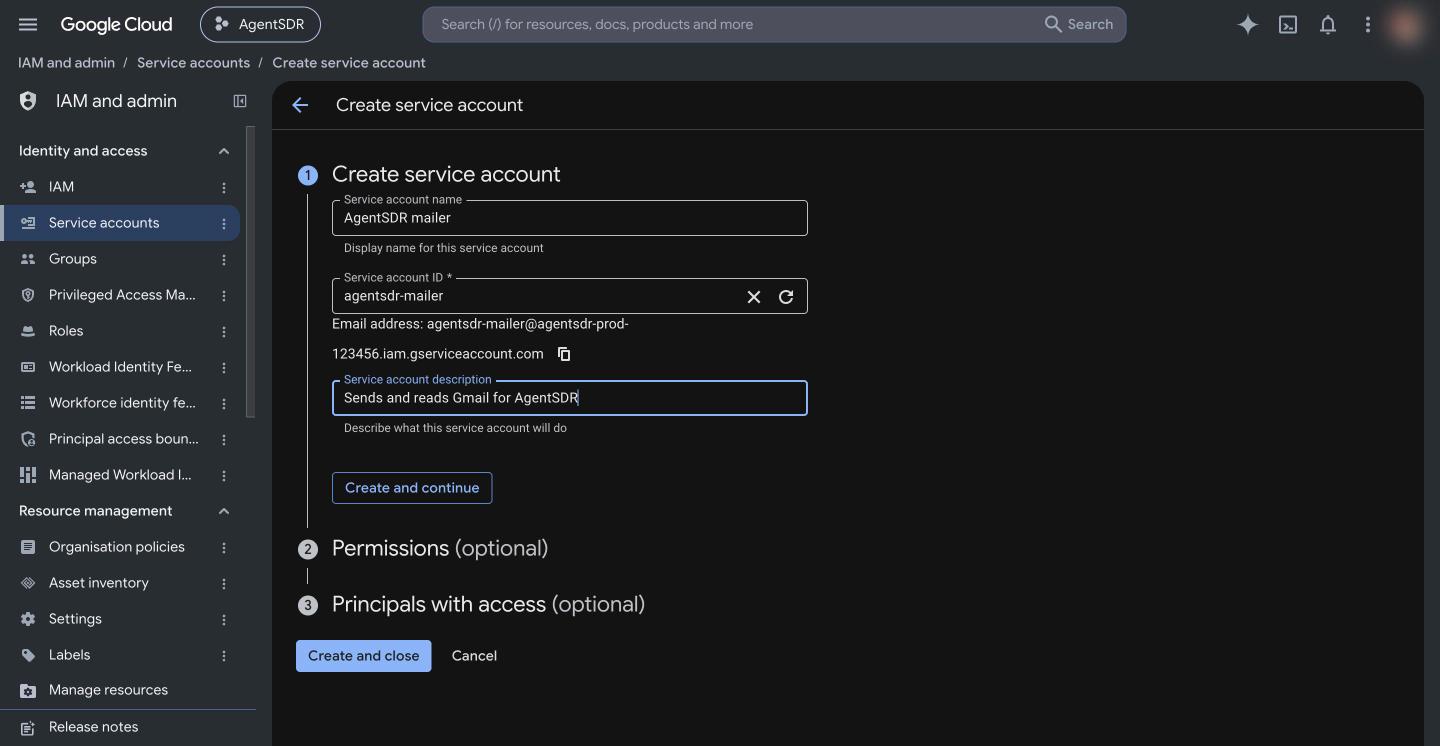

Open IAM & Admin → Service accounts and click Create service account. Enter a name (for example agentsdr) and click Create and continue.Do not grant it any roles. Skip the optional steps and click Done. Roles in Google Cloud control access to Cloud resources. AgentSDR only needs the service account to prove its identity; what it can do in Gmail is decided by the Admin console delegation in step 6. (AgentSDR’s own check on save only asks Google for a token for the service account, which needs no role.)
Only the name is required. The ID and email are generated from it.
4
Create a JSON key

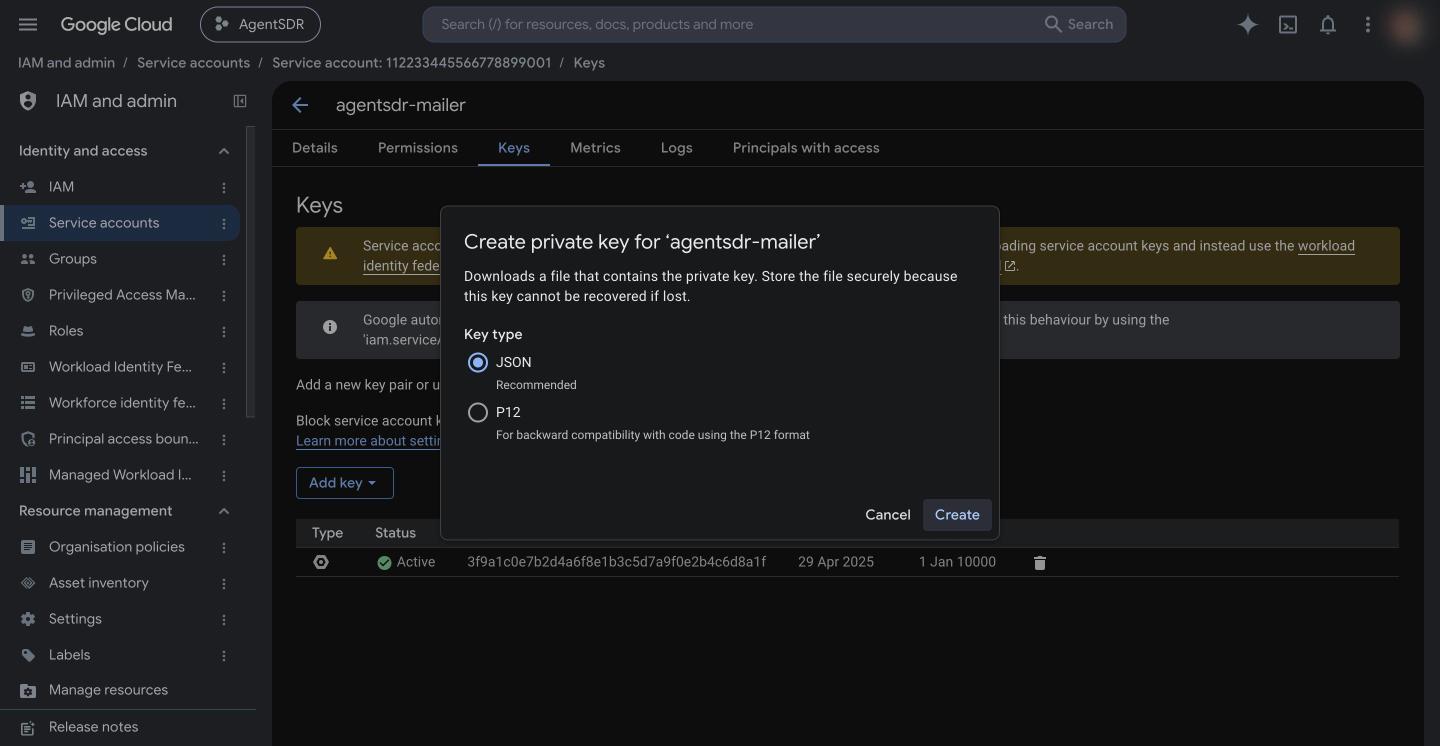

Click the new service account’s email, open the Keys tab, click Add key → Create new key, choose JSON and click Create. A .json file downloads. Google cannot show it to you again.
Keep JSON selected. Store the downloaded file somewhere safe until you upload it.
This file is a password for your whole domain’s delegated access. Keep it out of email, chat and git. After you upload it to AgentSDR, store it in a password manager or delete it.
Key creation is blocked by an organization policy
Organizations created after 3 May 2024 enforce the policy iam.disableServiceAccountKeyCreation by default, so Create new key fails or is greyed out. A Google Cloud Organization Policy Administrator has to allow it:
In the console, open IAM & Admin → Organization Policies for your organization and find Disable service account key creation.
Either turn enforcement off for the project that holds your service account, or (Google’s recommended way) create a tag, tag only that project, and set the policy to not enforce for resources with that tag.
Retry step 4.
Google’s walkthrough: Create and delete service account keys. If you are not an organization admin, send that link to one. Re-enable the policy afterwards if you want it on for everything else.
5
Copy the service account's Client ID

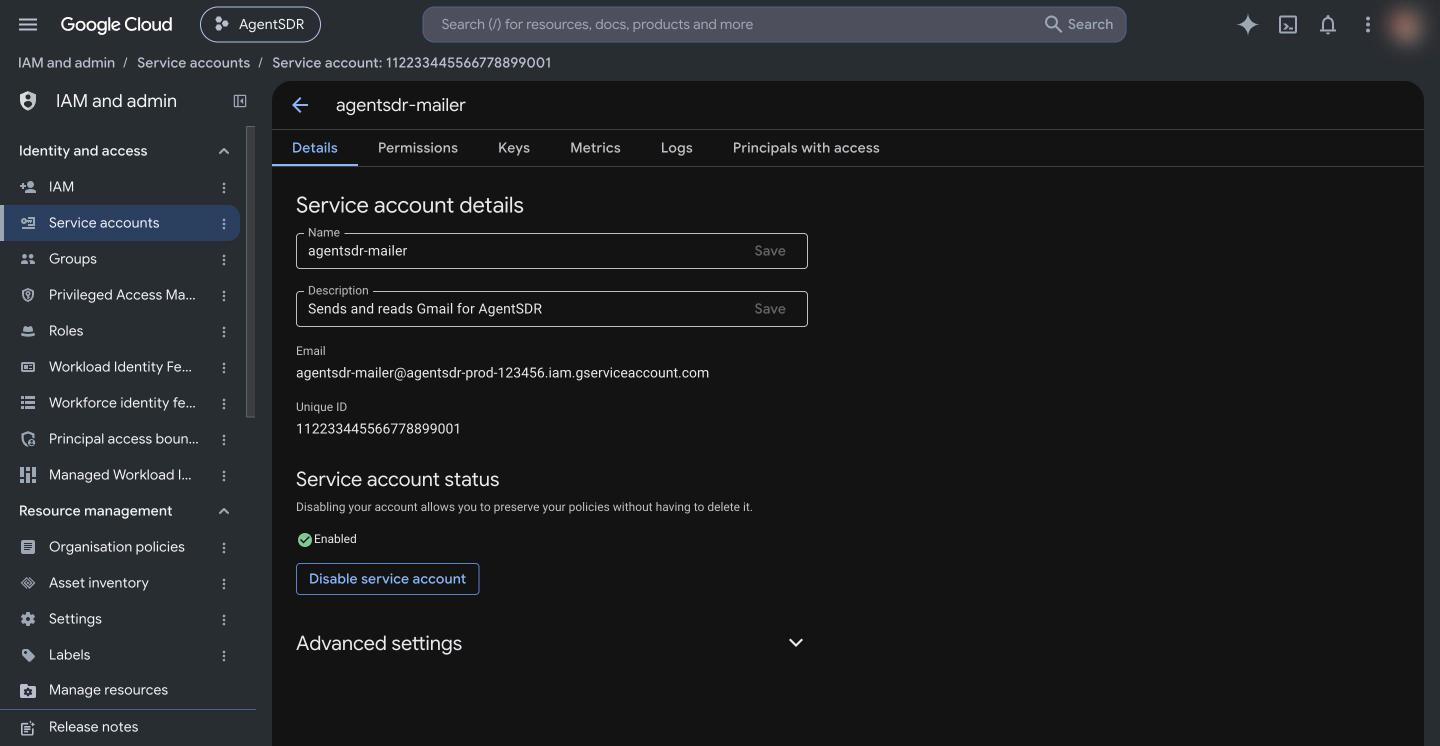

Open the service account’s Details tab and copy its Unique ID, a long number such as 112233445566778899001. This is the Client ID the Admin console asks for. The Client ID is also the client_id field in the JSON key file.
The Unique ID is the Client ID you paste into the Admin console.
6
Authorise it in the Google Admin console (super admin)
Sign in to admin.google.com as a super admin and go to Security → Access and data control → API controls, then click Manage domain-wide delegation and Add new.
Click Authorise. AgentSDR’s connect form has a Copy button on the same scope line.

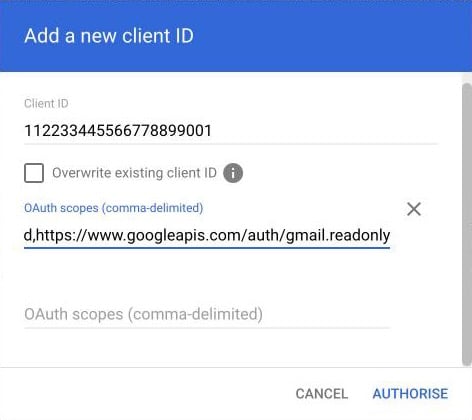

Add a new client ID: the service account's Unique ID, and both scopes on one line separated by a comma.
Google says changes can take up to 24 hours but typically happen more quickly. If a mailbox test fails right after this step with unauthorized_client, wait a few minutes and try again.
7
Connect it in AgentSDR
In AgentSDR open Settings → Email → Connection. On the Google Workspace card click Connect (owners and admins only).
Click Upload key file and choose the JSON from step 4. It fills Service account email and Private key and stays in your browser. You can also paste both by hand.
Leave Gmail Pub/Sub topic empty for now. You add it in Gmail reply sync.
Click Connect & test.

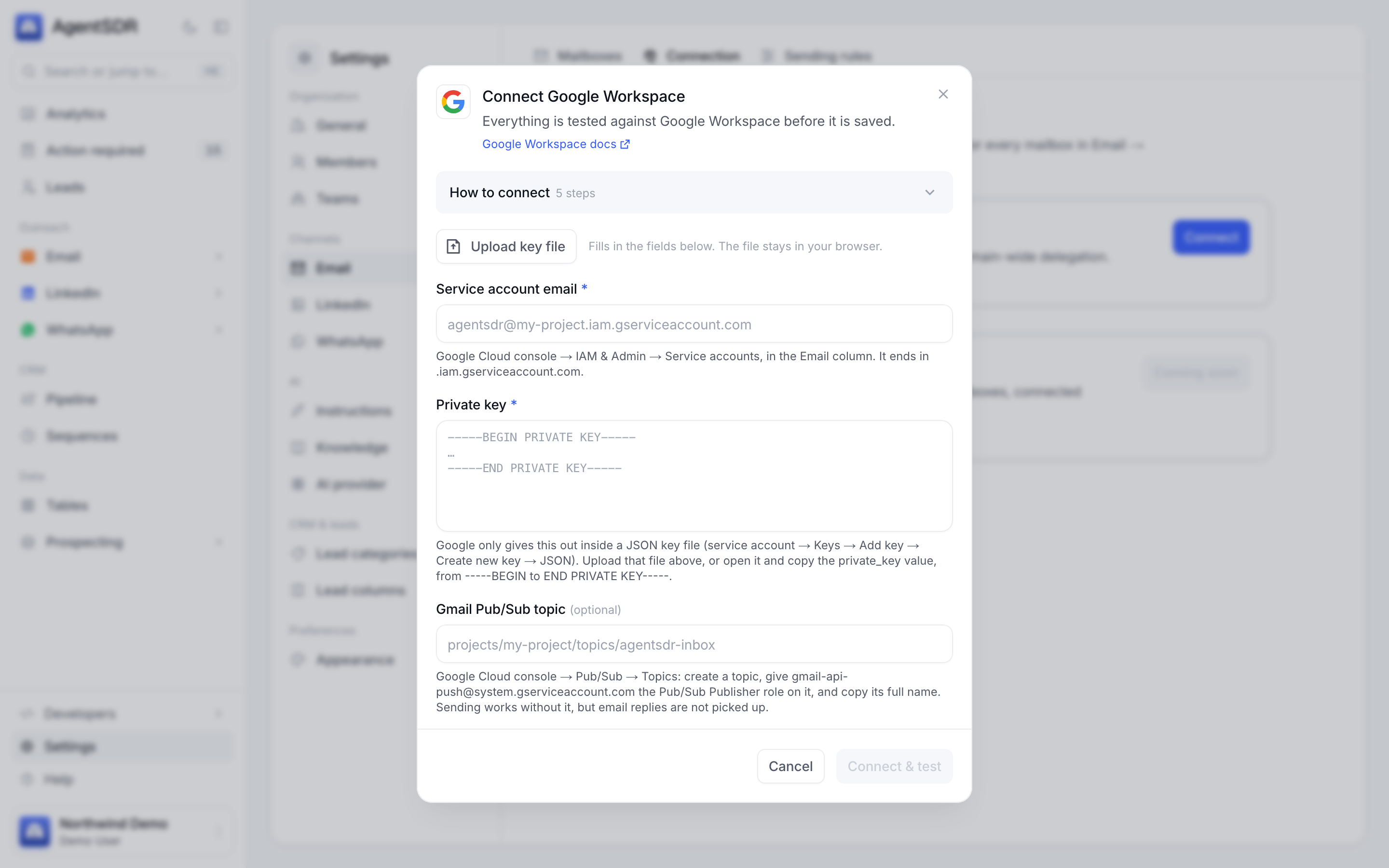

The dialog before a key file is uploaded.
On save AgentSDR makes one live call: it asks Google for a token for the service account using your key. That proves the key is genuine and not revoked. It cannot prove delegation, because delegation is checked per mailbox in the next step. If a Pub/Sub topic is filled in it must look like projects/<project>/topics/<topic>. The saved key is encrypted at rest and belongs to your organization only.
8
Add a mailbox
Open Settings → Email → Mailboxes, click Add mailbox, enter a real Workspace address (for example [email protected]), and click Connect & test. AgentSDR acts as that user and reads their Gmail profile, which proves delegation works for that address. You see Mailbox connected, or The connection test failed with Google’s message. More on mailboxes in Connect email.
The key could not get a token. Common causes: the key was deleted in Google Cloud, you pasted the wrong value, or the service account was disabled. Create a fresh JSON key (step 4) and upload it.
Service account email must end in .iam.gserviceaccount.com
You entered something other than the service account’s email. Use the address from the Email column on the Service accounts page, or upload the key file.
Private key must run from -----BEGIN PRIVATE KEY----- to -----END PRIVATE KEY-----
The pasted key is cut off. Upload the JSON file instead, or copy the whole private_key value. AgentSDR tolerates the surrounding quotes and literal \n characters.
That file is not a service account key file
The file is not the JSON key of a service account. Download one from the service account’s Keys tab. The file must contain "type": "service_account".
unauthorized_client (shown as the mailbox error)
Google does not accept this service account for that user. Check in Manage domain-wide delegation that the Client ID is the service account’s Unique ID (not its email or the project ID), that both scopes are present with no spaces or typos, and that you are not still inside the propagation window (up to 24 hours, usually minutes).
access_denied, or a scope error
One of the scopes is not authorised in the Admin console. Edit the delegation entry and paste the full scope line from step 6.
invalid_grant (for example invalid_grant: Invalid email or User ID)
Google has no such user to impersonate. The address must be an existing, active user on your Workspace domain (an alias, a group, a different domain or a suspended user fails). Fix the address and click Test again.
Gmail API has not been used in project ... before or it is disabled
Step 2 was skipped, or done in a different project from the one that owns the service account. Enable the Gmail API in the project where the service account lives and retry after a minute.
Service account key creation is disabled / constraints/iam.disableServiceAccountKeyCreation
The organization policy in step 4 blocks key creation. See the note under that step.
... is already connected to another organization
A Gmail address can belong to only one AgentSDR organization. Remove it from the other organization first.
The email pages show Connect Google Workspace
Google is not connected for this organization, or someone clicked Disconnect. Background sending stops while it is disconnected, and there is no environment-variable fallback.
The key is encrypted at rest with your instance’s INTEGRATION_CREDENTIALS_KEY and is stored per organization. It is never sent back to the browser; when you edit the card, leave Private key blank to keep the saved one.
Delegation is limited to the two scopes above. Review the entry in the Admin console from time to time and remove it if you stop using AgentSDR.
To rotate: create a new JSON key (step 4), upload it on the Connection card and save, then delete the old key under the service account’s Keys tab.
Disconnecting in AgentSDR does not remove the delegation. Remove it in the Admin console too if you are done with it.
